คำอธิบาย
แรงดันไเข้า 220 - 240 โวลท์เอซี : 50 - 60 เฮิทซ์ : 1เฟส ; INPUT SOURCE 220 - 240 VAC : 50 - 60 Hz
SPECIFICATION

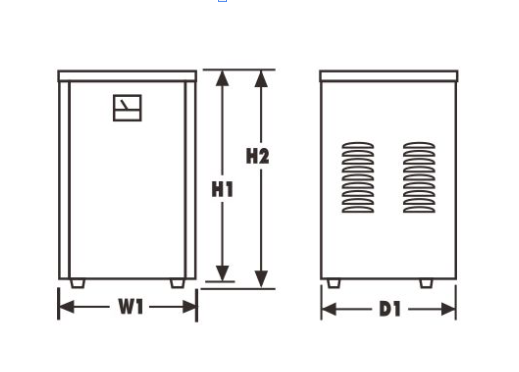

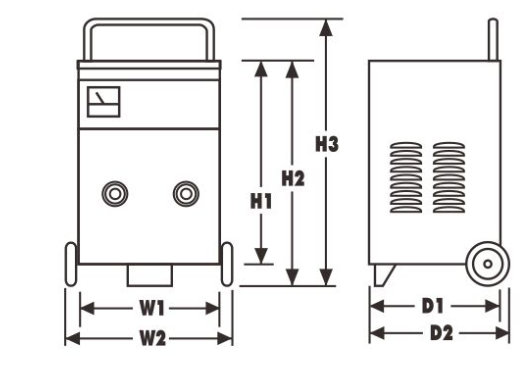

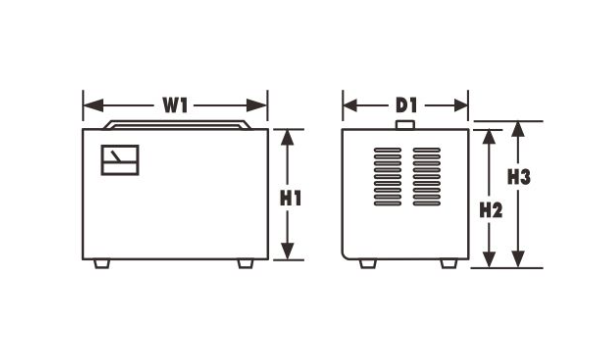

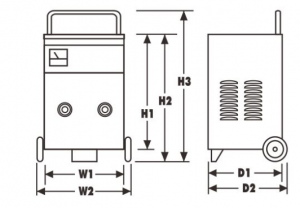

| MODEL | CASING | OUTPUT VOLTAGE | CHARGING (AAC) | CHARGING (ADC) | BOOSTING CURRENT (A) | INPUT ac. (Watt) | สายไฟออก (Cm) | สายไฟเข้า (Cm) | W1 | W2 | D1 | D2 | H1 | H2 | H3 | Weight (kgs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P2420 | lron | 6-12-24 | 20 | 15 | - | 483 | 110 | 110 | 305 | - | 218 | - | 192 | 202 | 217 | 8.2 |
| P2430 | lron | 6-12-24 | 30 | 20 | - | 690 | 110 | 160 | 330 | - | 245 | - | 205 | 222 | 237 | 11.8 |
| PST2430 | Stainless | 6-12-24 | 30 | 20 | - | 690 | 110 | 160 | 330 | - | 245 | - | 205 | 222 | 237 | 11.8 |
| P6020 | lron | 6-12-24-36-48-60 | 20 | 15 | - | 1035 | 130 | 180 | 357 | - | 357 | - | 553 | 570 | - | 20.0 |
| P6030 | lron | 6-12-24-36-48-60 | 30 | 20 | - | 1518 | 130 | 180 | 357 | - | 357 | - | 553 | 570 | - | 27.4 |
| P9030 | lron | 6-12-24-36-48-60-72-84-90 | 30 | 20 | - | 2070 | 130 | 180 | 357 | - | 357 | - | 553 | 570 | - | 30.0 |
| P2460 | lron | 6-12-24 | 60 | 40 | 300 | 1472 | 120 | 180 | 330 | 435 | 330 | 340 | 447 | 532 | 745 | 29.5 |
| PST2460 | Stainless | 6-12-24 | 60 | 40 | 300 | 1472 | 140 | 180 | 368 | - | 356 | - | 382 | 427 | 457 | 25.0 |
| P24100 | lron | 6-12-24 | 100 | 70 | 500 | 2900 | 120 | 160 | 360 | 465 | 360 | 480 | 505 | 607 | 840 | 38.0 |
| PST24A100 | Stainless | 6-12-24 | 100 | 70 | 500 | 2900 | 140 | 180 | 368 | - | 356 | - | 382 | 427 | 457 | 32.0 |
