คำอธิบาย

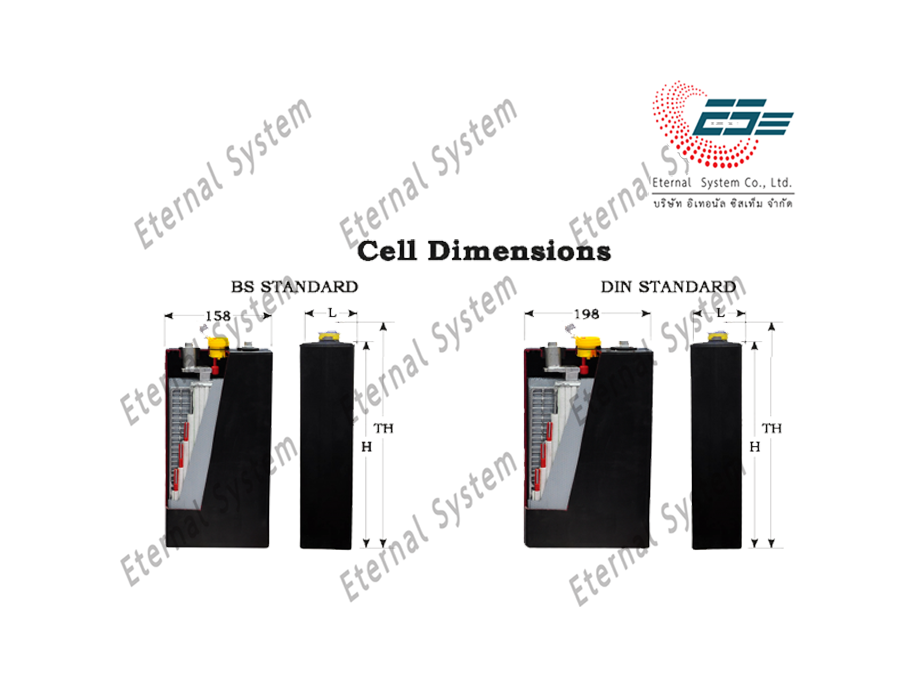

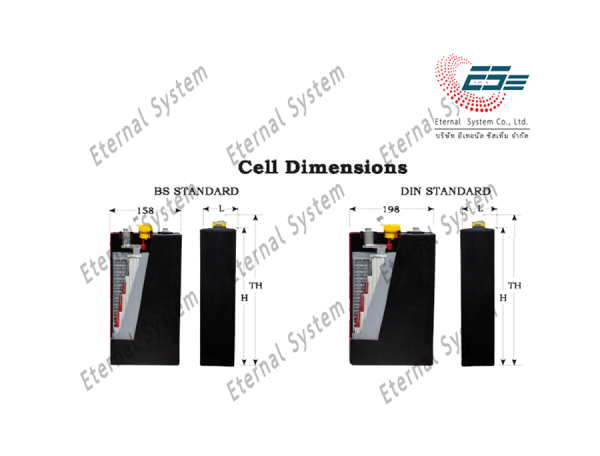

BS STANDARD
(Width 158 mm.)
| Model | Norminal Capacity (AH/5Hr) | L | H | TH | APprox Weight with A cid |
|---|---|---|---|---|---|
| VCD4A | 270 | 90 | 395 | 427 | 15.5 |
| VCD6 | 320 | 109 | 395 | 427 | 18.0 |
| VCD7 | 360 | 127 | 395 | 427 | 20.0 |
| VCD8 | 440 | 144 | 395 | 427 | 24.5 |
| VCD9 | 480 | 161 | 395 | 427 | 26.5 |
| VCD10 | 565 | 174 | 395 | 427 | 29.0 |
| VCDH8 | 485 | 144 | 410 | 445 | 25.0 |
| VCDH10 | 600 | 174 | 410 | 445 | 31.0 |
| VCF3 | 225 | 61 | 490 | 522 | 12.5 |
| VCF4 | 290 | 90 | 490 | 522 | 18.0 |
| VCF4A | 340 | 90 | 490 | 522 | 19.0 |
| VCF6 | 440 | 109 | 490 | 522 | 23.0 |
| VCF7 | 525 | 127 | 490 | 522 | 28.0 |
| VCF8 | 580 | 144 | 490 | 522 | 31.0 |
| VCF10* | 730 | 174 | 490 | 522 | 39.0 |
| VCl3 | 250 | 61 | 518 | 550 | 17.0 |
| VCl4 | 320 | 78 | 518 | 550 | 19.0 |
| VCl5 | 390 | 90 | 518 | 550 | 20.0 |
| VCl6 | 480 | 109 | 518 | 550 | 26.0 |
| VCI7 | 565 | 127 | 518 | 550 | 28.0 |
| VCl9 | 730 | 158 | 518 | 550 | 37.0 |
| VCl12* | 960 | 206 | 518 | 550 | 50.0 |
| VCH4 | 420 | 78 | 695 | 725 | 26.0 |
| VCH5 | 525 | 94 | 695 | 725 | 29.0 |
| VCH6 | 630 | 109 | 695 | 725 | 34.0 |
| VCH7 | 735 | 128 | 695 | 725 | 40.0 |
| VCH8 | 840 | 142 | 695 | 725 | 45.0 |
| VCH9* | 935 | 166 | 695 | 725 | 51.0 |
